ZyloDent 3D All-in-One Printer (Preorder special with $2000 resin credit and 0% financing)

$12,900.00

play-rounded-fill

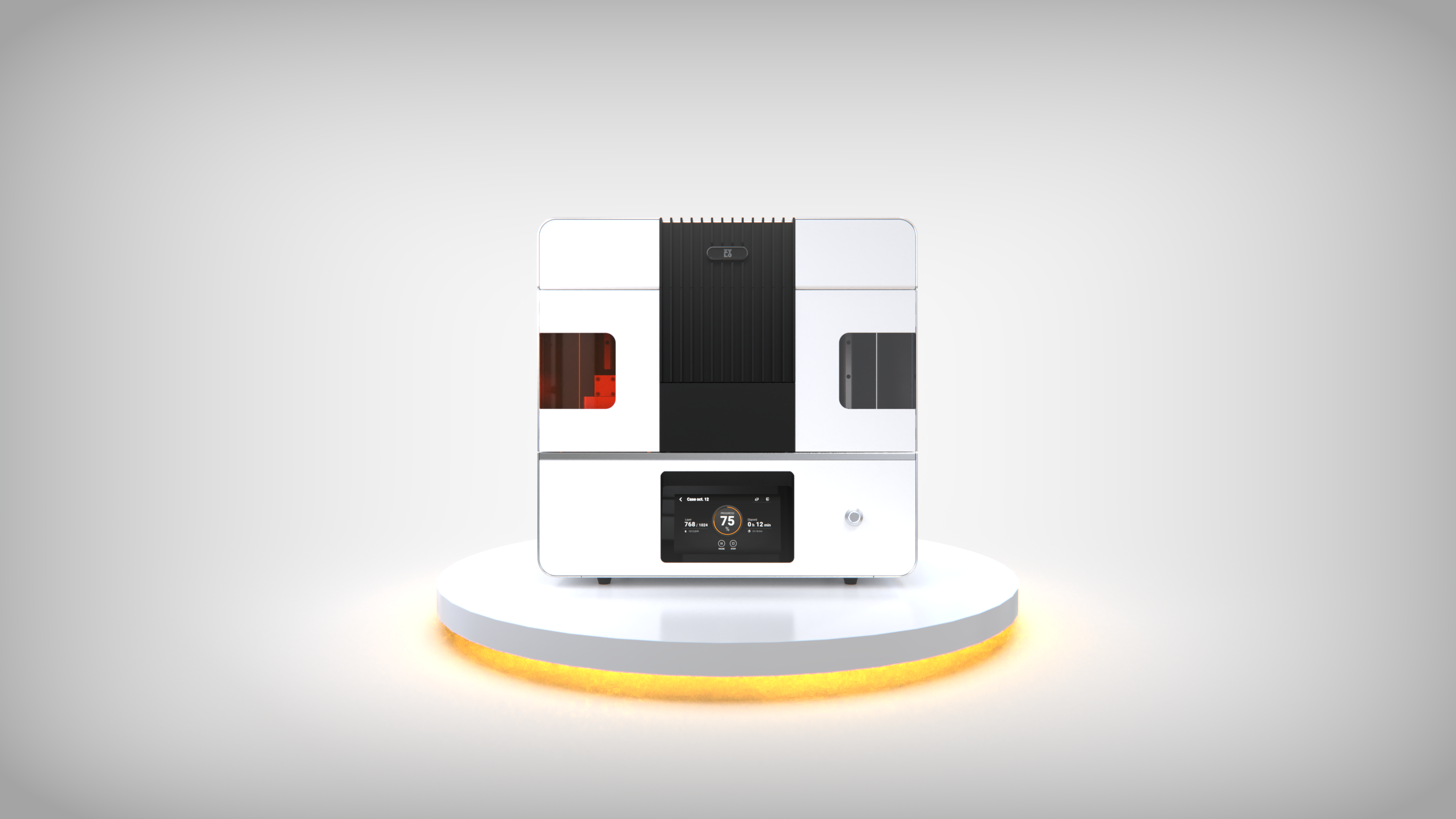

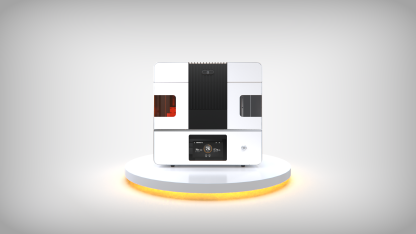

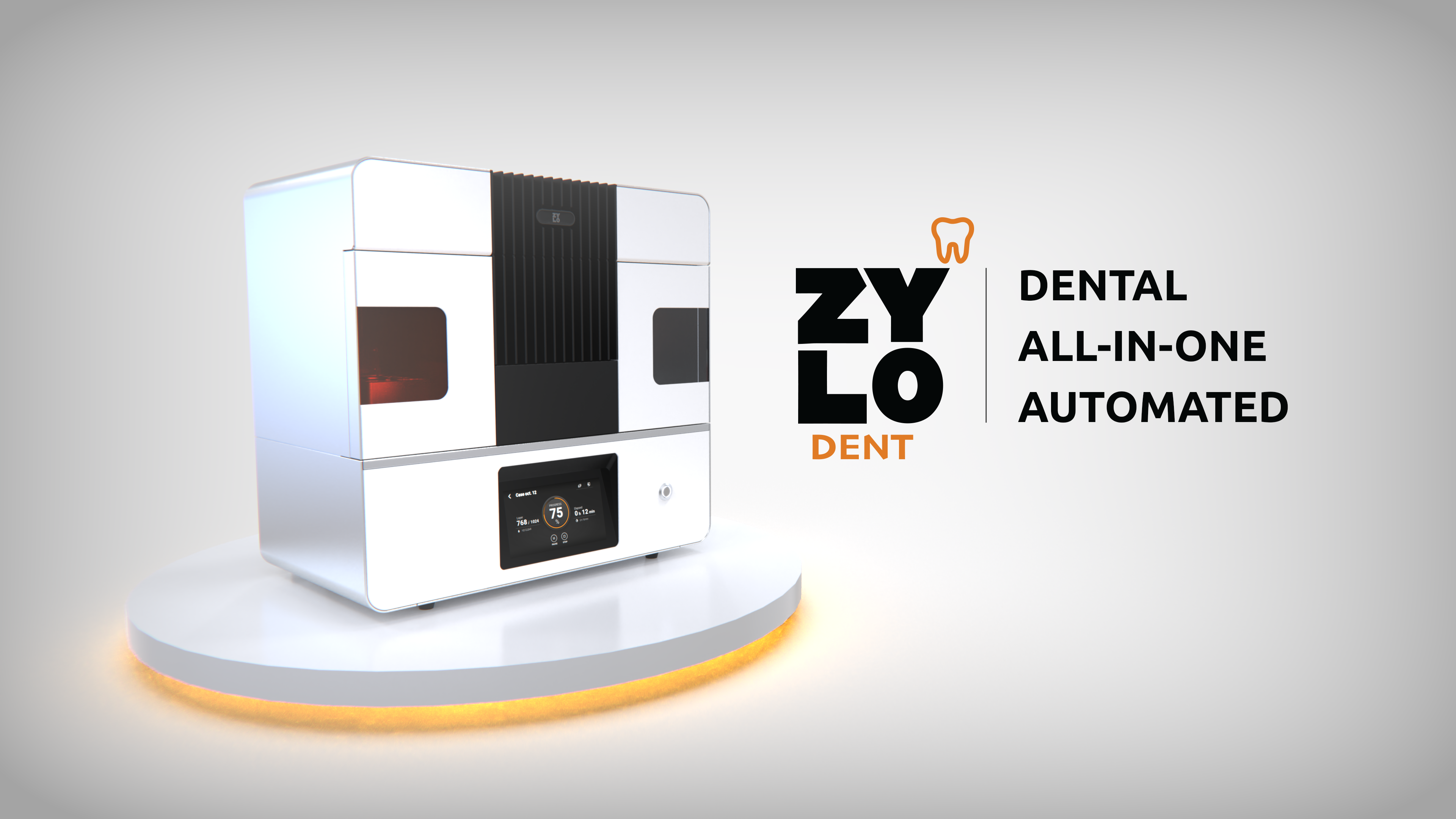

The CAD-Ray Exclusive ZyloDent All-In-One printer from Zylo 3D.

Read the Press Release Here



This tabletop printer includes a printer, washer, dryer and post cure into one compact unit.

This fully capable end to end solution is GREAT for Models, nightguards and more.

World famous CAD-Ray training and support is included with this unit as well as a free license to CLINUX by CAD-Ray CAD Software for Nightguard and Crown design.

PRE ORDER SPECIAL Limited Supply:

Act by 3/31/2025 (or while supplies last)

  • 24 months 0% financing through EverBank
  • $2,000 in your choice of FREE resin through CAD-ray.com



13 in stock

Description

All in one. Automated. Same-day Dentistry

Visionary dentists like you are always ready to embrace the forefront of dental innovation. That is what we are here for. Elevate your practice and create extraordinary patient experiences with Zylo3D’s breakthrough line of products!

Zylo Edge

The breakthrough dentists need is here. ZyloDent is our revolutionary patented all-in-one automated 3D printing solution. Using cutting-edge technology it delivers high quality, high speed, and high efficiency while reducing human intervention. Eliminate the hassle of resin handling and experience the future of dentistry with ZyloDent, a solution that optimizes dental workflows and redefines the possibilities of dental technology.

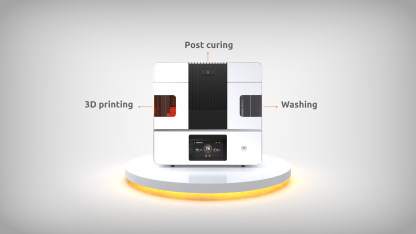

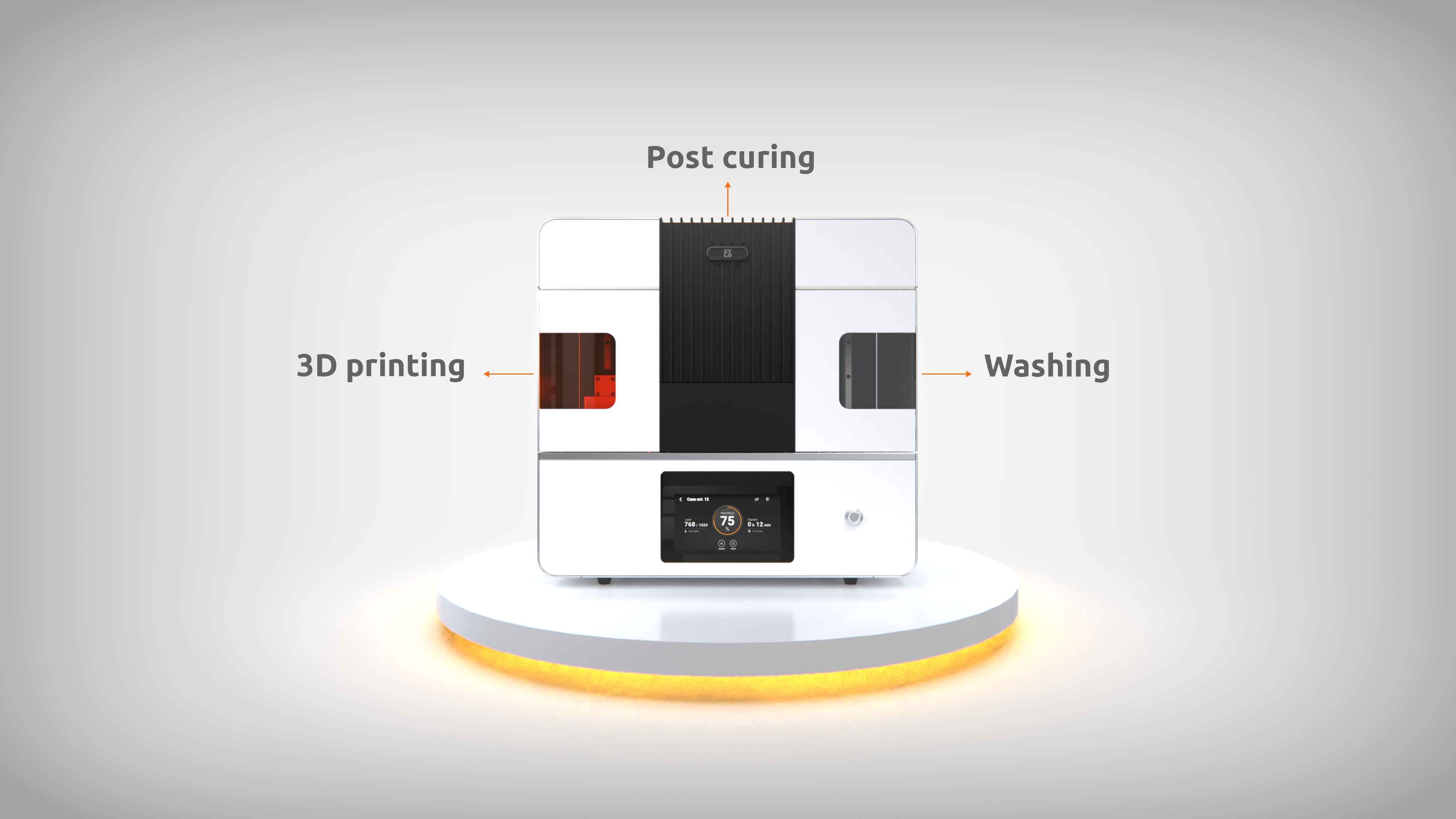

An All-In-One 3D Printer

You can print, wash, dry, and cure all in a single synced machine that requires minimal space and no prior printing experience while eliminating complexities associated with resin handling.

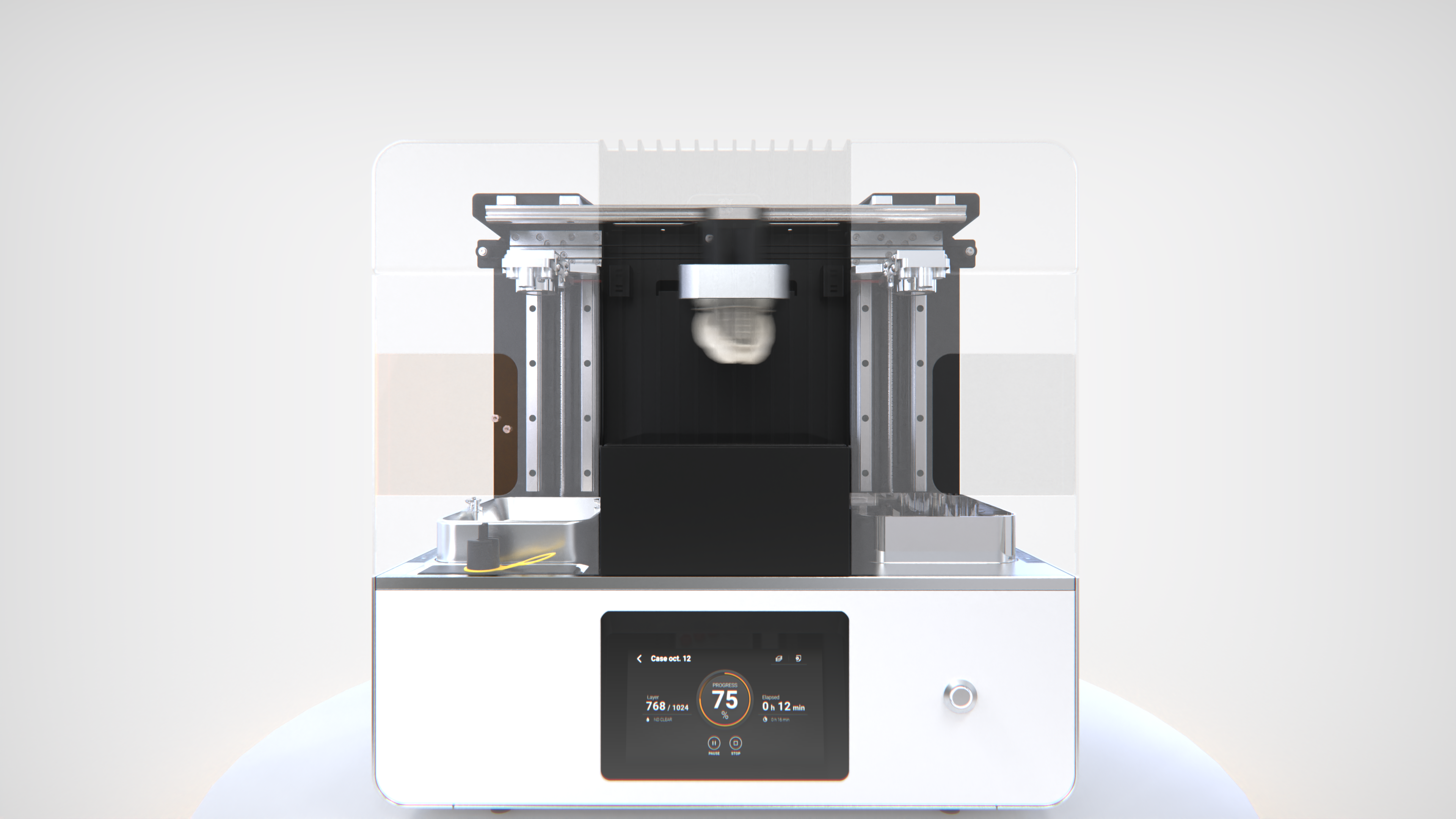

Automation

Unlock automation with our integrated robotic 3D Printing system, which reduces human intervention, boosts reliability, and ensures user-friendly operatio

Chairside Fast Printing

We feel you! The hassle and the long process associated with printing can all be eliminated. Using Zylo3D, you can print within one visit creating a better patient experience and a more streamlined process.

Adaptive Heating

Constant Operating Temperature Via thermal imaging sensor

Adaptive Speed

ML-Based Motion adjustment for precise printing

Industrial DLP Optical Engine

Real-Time Monitoring of LED light intensity with Optical Sensor

Revolutionary washing system

Enhanced Biocompatibility and mechanichal strength

Automated UV Post-Cure

Complete Polymerization for Lasting Restorations

This is beyond building machines. We created our patent-pending technology that combines an all-in-one automated revolutionary solution. Our Zylo Tech helped us create ZyloDent to be new groundbreaking step towards the future of dentistry.

Additional information

Printing Unit

◦ Printing Technology: Digital Light Processing (DLP)
◦ Build Volume: 125 mm x 70 mm x 100 mm
◦ Resolution: X/Y resolution: 50 microns, Z-layer thickness: 50-100 microns
◦ Light Source: LED, Wavelength: 405 nm
◦ Projection Intensity: 10.5 mW/cm2
◦ Average Printing Speed: for 20 mm/hr 50 um layer thickness
◦ Average Printing speed: 45 mm/hr for 100 um layer thickness
◦ Material of Build Plate: Anodized Aluminum

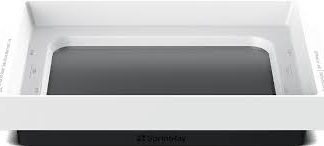

◦ Material of Resin Tank: Anodized Aluminum
◦ Material of anti-stick film: FEP
◦ Resin Tank Temperature Control: YES
Washing Unit

Washing Unit:
◦ Cleaning Method: Bubbles generator [Zylo 3D Washing method] *patent
pending*
◦ Solvent: IPA 99%
◦ Cleaning Tank Size: X: 160 mm, Y: 90 mm, Z: 100 mm
Curing Unit

◦ Curing UV Technology: LED
◦ Wavelengths: 365, 385, 405 nm
◦ Curing Chamber Size: X: 165 mm, Y: 150 mm, Z: 75 mm
◦ Number of LEDs: 30
◦ LED Output Power: 3W
◦ Irradiance per PCU side: 55 mW/cm2
◦ Temperature Control: True
Hardware/CAM/Slicer

◦ Software: DentPrint [Zylo 3D CAM software]
◦ User Interface: 7-inch touchscreen, PC interface with LAN and Wi-Fi
connectivity
